Product Description

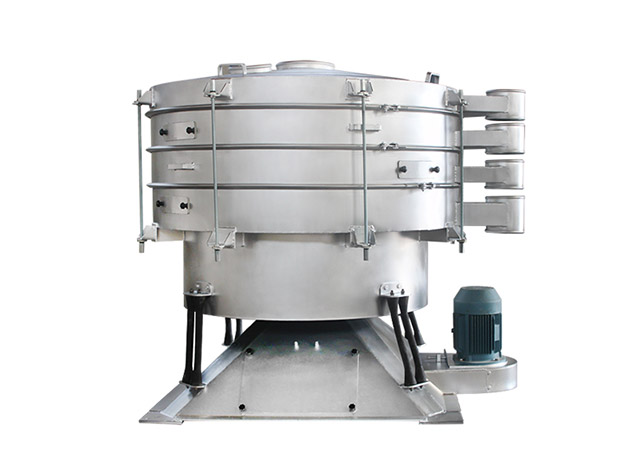

DZYS series tumbler screen machine is a kind of inertial equipment with mature technology and classical application. Its new design and unique structure make it the closest manual screen machine. The Tumbler sieve machine have bright application prospects for its perfect screening effect. From the aspect of its trajectory, it is a non-linear inertial vibrating screen.

Product Name	DZYS Swing Sieve Tumbler Screen
Material	stainless steel / carbon steel
Layer	1-5 layers
Voltage	240V/380V/414V/440V/460V…
Rotational speed	200 r/min
Diameter	600 mm – 2600 mm
Used industry	Food industry,Chemical industry,Medicinal industry,Medicinal industry,Abrasive material and ceramic industry

Product structure

Technical parameter

Model	Mesh zrea(㎡)	Granularity(mm)	Amplitude(mm)	Power(kw)
DZYS-600	0.28	≤100	20-70	0.75
DZYS-1000	0.66			1.5
DZYS-1200	0.98			2.2
DZYS-1500	1.67			3.0
DZYS-1800	2.37			4.0
DZYS-2000	2.89			4.0
DZYS-2600	5.3			5.5

Application

–Chemical industry:resin pigment,calcium carbonate,decorative coatings, medicine,etc
–Abrasive material and ceramic industry:building sand,alumina,silica sand,abrasive,refractory material,slurry, etc.
–Mechanical industry:casting sand,charcoal,grafito,powder metallurgy,
metal powder,etc
–Food industry:sugar,salt,alkali,flour powder,farina,gourmet powder,
starch,milk powder,yeast powder,etc

Details Images

Customized service

According to the needs of the buyer, the number of swing screen layers can be customized. At present, our factory supports the customization of one to four layer swing screen.
Stainless steel material is the first choice for medical grade and food grade buyers, carbon steel is the first choice for cost saving, contact with stainless steel can not only meet the health requirements, but also save costs.

Customer site

Packing & Delivery
